MIneral OIl Metal Products

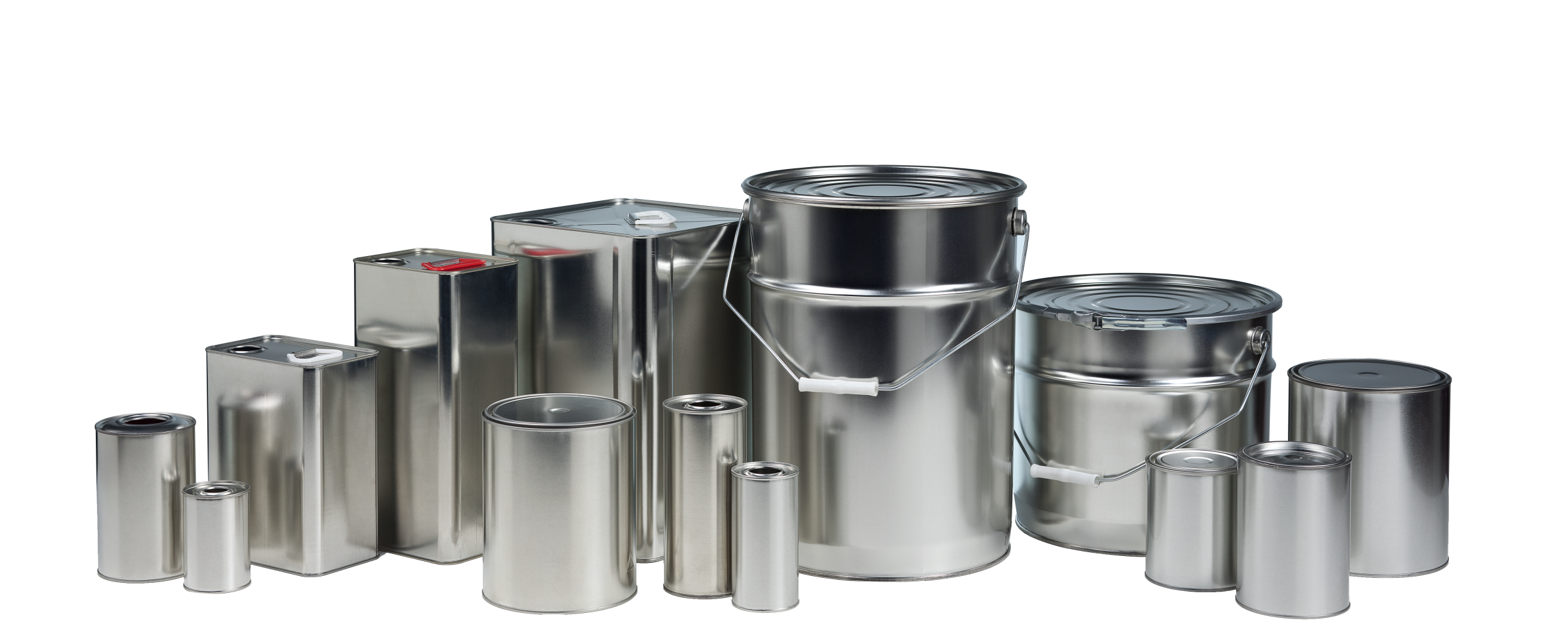

Cylindrical and square formed metal containers, buckets and cans varying in volumes ranging from 200 ml to 18 L for lubricants.

TECHNICAL SPECIFICATIONS			SQUARE
Width ( mm )	Length ( mm )	Height ( mm )
45	62	min.	86
45	62	max.	96
60	116	min.	68
60	116	max.	185
92	150	min.	190
92	150	max.	320
107	170	min.	190
107	170	max.	320
117	150	min.	250
117	150	max.	312
195	195	min.	185
195	195	max.	300
235	235	min.	250
235	235	max.	350

TECHNICAL SPECIFICATIONS		CYLINDRICAL
Diameter ( mm )	Height ( mm )
52	min.	38
52	max.	99
65	min.	34
65	max.	240
73	min.	32
73	max.	240
84	min.	33
84	max.	240
99	min.	28
99	max.	240
105	min.	95
105	max.	225
109	min.	95
109	max.	196
153	min.	67
153	max.	242
165	min.	180
165	max.	251
185	min.	205
185	max.	205
215	min.	230
215	max.	283
230	min.	230
230	max.	283
270	min.	260
270	max.	450
